Intelligent Swing Barrier Pedestrian Gate

Model: TS-PB024
Place of Origin: Anhui,China (Mainland)
Brand Name: timesdoes
Model No.: TS-PB020
Weight: 40KG
Brake lever length: 600mm
Brake lever steering: one-way, two-way
Working environment: indoor, outdoor
Working voltage: AC220V±15%
Motor parameters: 24V/30-60W
Communication interface: RS485 or TCP/IP
Channel width: 550-600MM
Material: 304 stainless steel


skype basketAdd to Basket  Edit

Share |

Product Description

Product Culture
Payment & Shipping Terms Supply Capacity
Unit Price:1387.0 USDProduction Capacity:30000 PCS Per Month
Trade Term:FOBPacking:paper box or wooden...
Payment Terms:Paypal, L/C, T/T, WUDelivery Date:7-15days
Min. Order:1 Piece/Pieces
Means of Transport:Ocean, Air, Land

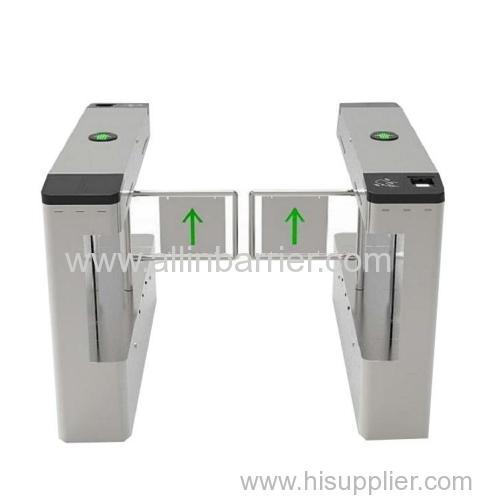

Intelligent  Swing Barrier Pedestrian Gate


1. It has the functions of fault self-check and alarm prompt, which is convenient for users to maintain and use.

2. Adjustable speed: The speed of opening and closing of the swing arm is adjustable in multiple stages.

3. Resistance rebound function: During the reset process of the swing arm, if an external force occurs to reverse the swing arm, the swing arm will automatically start the reverse thrust and send out an alarm. After the external force disappears, it will automatically return to zero and resume traffic.

4. Automatic protection function: When the external force prevents the normal movement of the swing arm, and the external force is continuous, the system will automatically detect and automatically protect after 20 seconds and enter the dormant state. When the next legal signal is input, the gate will automatically return to normal.

5. Anti-tailgating function: A. After the people and objects in front pass by, during the reset process of the swing arm, if someone tailgating or rushing to the gate, the swing arm will automatically reverse thrust to block and give an alarm. B. In the case of infrared detection, when the people and objects in front do not pass through completely, if someone follows and breaks in, the infrared will start the alarm.

6. Multi-level anti-collision buffer function: When illegal passage or gate flushing, the brake lever buffers the corresponding angle and activates instant reverse thrust, and at the same time activates the alarm.

Product Name

Intelligent Swing Barrier Pedestrian Gate

Drive voltage24v
Motor power30w brushless motorWeightGross weight 65Kg
Material304 stainless steelMotor parameters24V/30-60W

Common Places to Use  Swing Barrier Pedestrian Gate

  • passenger station

  • tourist attractions

  • playground

  • Exhibition Center

  • concert

  •                                                     Application

    Our Company

    Automatic Straight Parking Barrier Gate

    Anhui Allin Intelligent Technology Co., Ltd. was established in 2012. The company's civilian products mainly serve the people and vehicle access control systems of smart life; industrial products mainly serve the industrial Internet of Things, sensing, and motion control systems.provide a wide range of products and services to control vehicular access to private and public propertie.


    We specialize in manufacturing high-quality barrier gates, boom gates, turnstiles, and other access control systems that are designed to efficiently manage and control the flow of vehicles and pedestrians. And we cater to a variety of clients such as commercial and industrial businesses, gated communities, airports, hospitals, government institutions, and more. We not only provide installation services but also offer maintenance and repair services to ensure that our clients' access control systems remain operational and secure.


    Our team of qualified engineers and technicians is committed to delivering exceptional customer service, from the design stage through to installation and maintenance. Through our cost-effective and customized solutions, aim to help our clients optimize their parking areas and achieve maximum security, safety, and efficiency.


    With the ever-increasing need for effective access control systems, barrier gate supply companies play a crucial role in ensuring the safety and security of both public and private spaces. And with our state-of-the-art technology, unparalleled expertise, and customer-centric approach, we are the ideal partner for all your parking barrier supply needs.


    Welcome to visit our company!

Product Culture

The swing barrier gate is mainly used for the management of the entrance and exit of the channel, and the usual application places only allow people to pass through, or people with luggage to pass through. Considering that the swing gate can achieve wider channel characteristics than the wing gate. Most of the swing gate passages can be mixed with pedestrians, bicycles, mopeds and other non-motor vehicles. It can be divided into vertical rounded swing gate, bridge trapezoidal swing gate, bridge trapezoidal swing gate, bridge inclined plane swing gate, bridge rounded corner swing gate, etc. Mainly used in enterprises, units, clubs, hotels, factories, libraries, communities, schools and other occasions. The followings are the benefits of swing barrier gates:
1. Automatic homing function: In the normally closed mode, after the passing process is over, the gate will automatically return to the blocking zero position;
2. Automatic reset function: (optional remote manual reset mode);
3. After the legal passage signal is given, if no one passes within the specified passage time (adjustable), the system will automatically return the gate to the blocking position, cancel this passage, and will not count;
4. The system is abnormal or illegal traffic causes the gates not to return to the arresting zero position. After the specified time (adjustable), the system automatically restores the gates to the arresting zero position;
5. Power-off gate opening function: when the power is off, the system will automatically open the gate flaps into an open state, which is convenient for evacuating the crowd and meets the fire protection requirements;
6. Anti-illegal intrusion function: when there is no legal passage signal or no passage during controlled passage, forcibly entering the passage will be regarded as illegal intrusion, and the system will automatically alarm and ensure that the gates are closed;
7. Anti-reverse intrusion function: before the end of the passage process in a certain direction, pedestrians entering the passage from the opposite direction will be regarded as reverse intrusion, and the system will automatically alarm;
8. Anti-tailgating traffic function: Infrared detectors detect pedestrian traffic conditions, and the system will automatically alarm and close the brake wings after detecting the tailgating phenomenon; the minimum recognition distance for tailgating is less than 20mm, ranking the leading level in the industry
